High Temperature CHP

ST&P®, Turboden Steam & Power ORC system®, is a new technical solution for Combined Heat & Power (CHP) generation, with a very high overall energy efficiency, directly employed in manufacturing and industrial processes. It allows the production of electricity and a valuable high temperature heat carrier, such as steam, directly exploitable in manufacturing processes.

2

plants

2.0999999999999996

MWe total

2018

first plant delivered
  • TURBODEN STEAM & POWER ORC SYSTEM®
  • TURBODEN SOLUTIONS FOR INDUSTRIAL PROCESSES

STEAM & POWER SOLUTION

Steam & Power application

HIGH-TEMPERATURE COGENERATION SYSTEM

The innovative principle of Steam & Power ORC Systems® is the temperature level of the cycle itself, about 100°C higher than for standard ORC units. It allows cogeneration of electricity and steam at medium pressure with a very high overall energy efficiency.

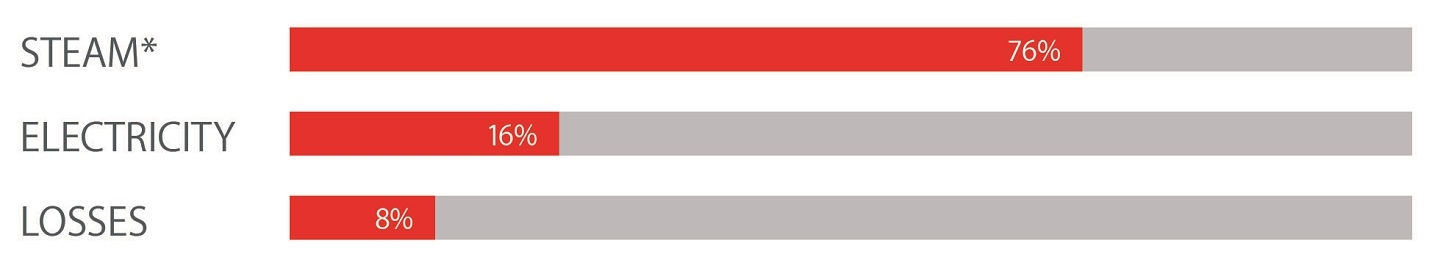

100% FUEL

100% Fuel

THE FEATURES

  • Electric power rating from 500 kWe to 6 MWe
  • CHP steam output pressure range from 3 to 30 bar
  • CHP steam capacity range from 4 to 50 ton/h

         *Steam output at 10 bar(g).

HOW IT WORKS

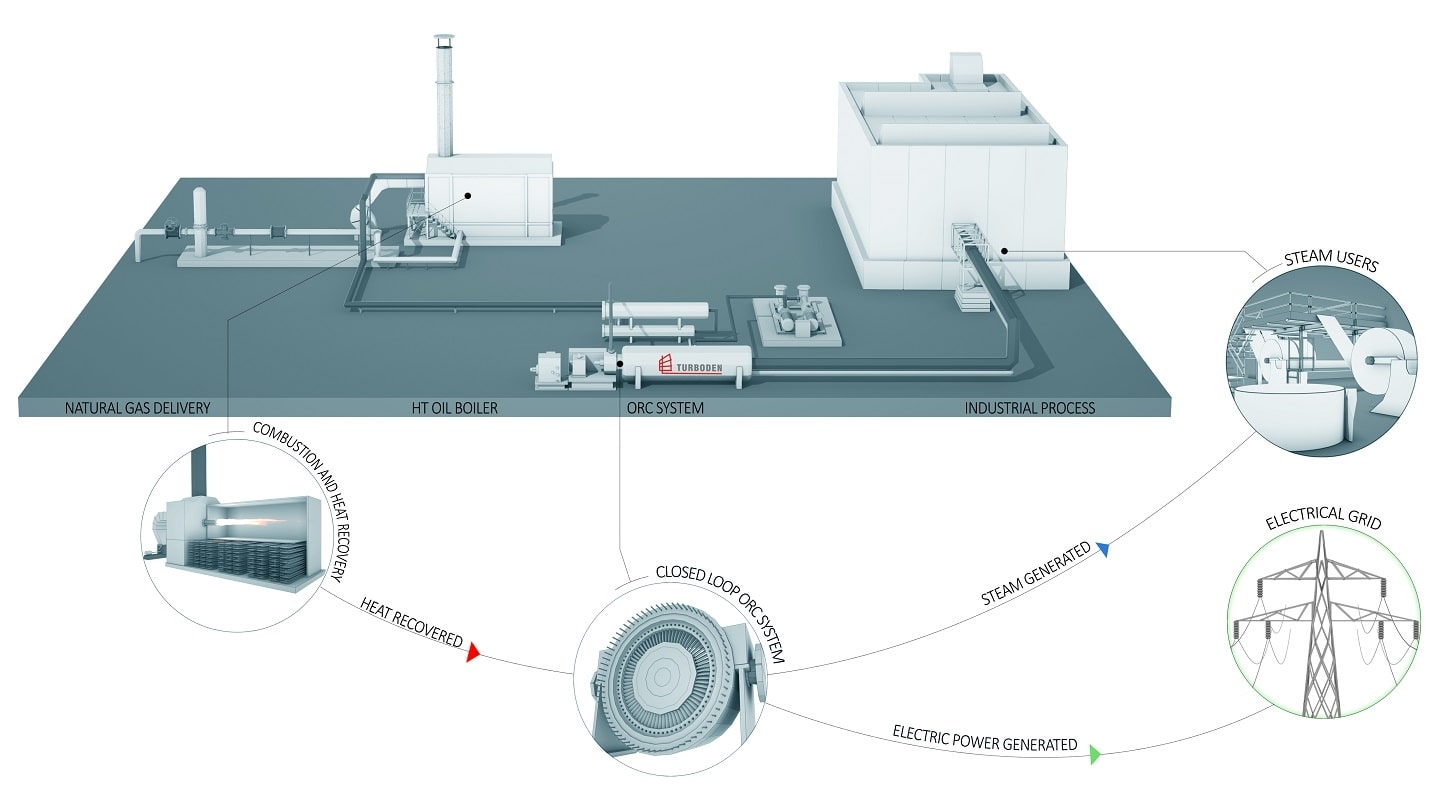

HEAT SOURCE

The fuel (natural gas, syngas, diesel, fuel oil, wood pellet and others) is fed to the combustion chamber of the boiler. There it is mixed with preheated air and burned.

INTERMEDIATE LOOP

The combustion heat is transferred to the thermal oil loop, which transfers the heat from the boiler to the ORC power unit.

ELECTRIC POWER

The ORC uses the heat coming from the  intermediate loop to evaporate the ORC working fluid that expands in the turbine generating electric power.

STEAM PRODUCTION

Downstream the turbine, the organic vapour pre-heats the organic liquid in the regenerator and is then condensed at high temperature releasing its latent heat for steam generation, to feed the manufacturing process.

Other high temperature heat media can be generated instead of steam: thermal oil, pressurized water, hot air, etc.

Steam & Power ORC System® was conceived to satisfy many manufacturing processes requiring electricity as well as relevant amount of medium pressure steam or other medium temperature (about 200 °C) media (e.g. pressurized water, thermal oil, etc.).

Manufacturing processes

MANUFACTURING PROCESSES

Manufacturing processes

ADVANTAGES

  • Excellent economic return of investment (PBT < 3 years, IRR > 30%)
  • Fuel flexibility (for both gaseous, liquid and solid fuels including waste. Different fuels can feed the same ORC unit).
  • High total energy efficiency
  • Prevailing steam output
  • High availability
  • High flexibility to partial load operation down to 20%
  • Low operation & maintenance cost
  • Modularity
  • Outdoor installation
  • Island operation
  • Combined with other CHP technologies if required
  • Hedge against rising electricity costs

ENVIRONMENTAL BENEFITS

  • Becoming “greener”
  • Reduced GHGs emissions
  • Increased energy output per unit of fuel consumption
  • Suited for sustainability plans
