Heat Pump to Hot Water
High-Temperature Heat Pumps for Hot Water Production
Turboden High-Temperature Heat Pumps are the ideal solution for industrial users and district heating networks looking to electrify their processes while maximizing efficiency and sustainability. Engineered to adapt to a wide range of applications, our systems deliver hot water at temperatures up to 150°C and can efficiently manage broad temperature conditions and lifts exceeding 100°C—well beyond what conventional electric technologies can achieve.
Whether you need easy-to-install modular units or customized systems, Turboden High-Temperature Heat Pumps offers flexibility and scalability from 5 up to 80 MW per unit, allowing parallel configuration to meet large-scale requirements. Turboden advanced thermodynamic cycles and high-efficiency compressors ensure optimal performance, making Heat Pumps an effective solution to reduce both operating costs and carbon emissions.
-
LARGE HEAT PUMP AND STEEL INDUSTRY FOR DECARBONIZED SMART CITY
-
REDUCE YOUR ENERGY BILL BY GENERATING YOUR OWN POWER
-
TURBODEN SOLUTIONS FOR INDUSTRIAL PROCESSES
OUR WORKING RANGE

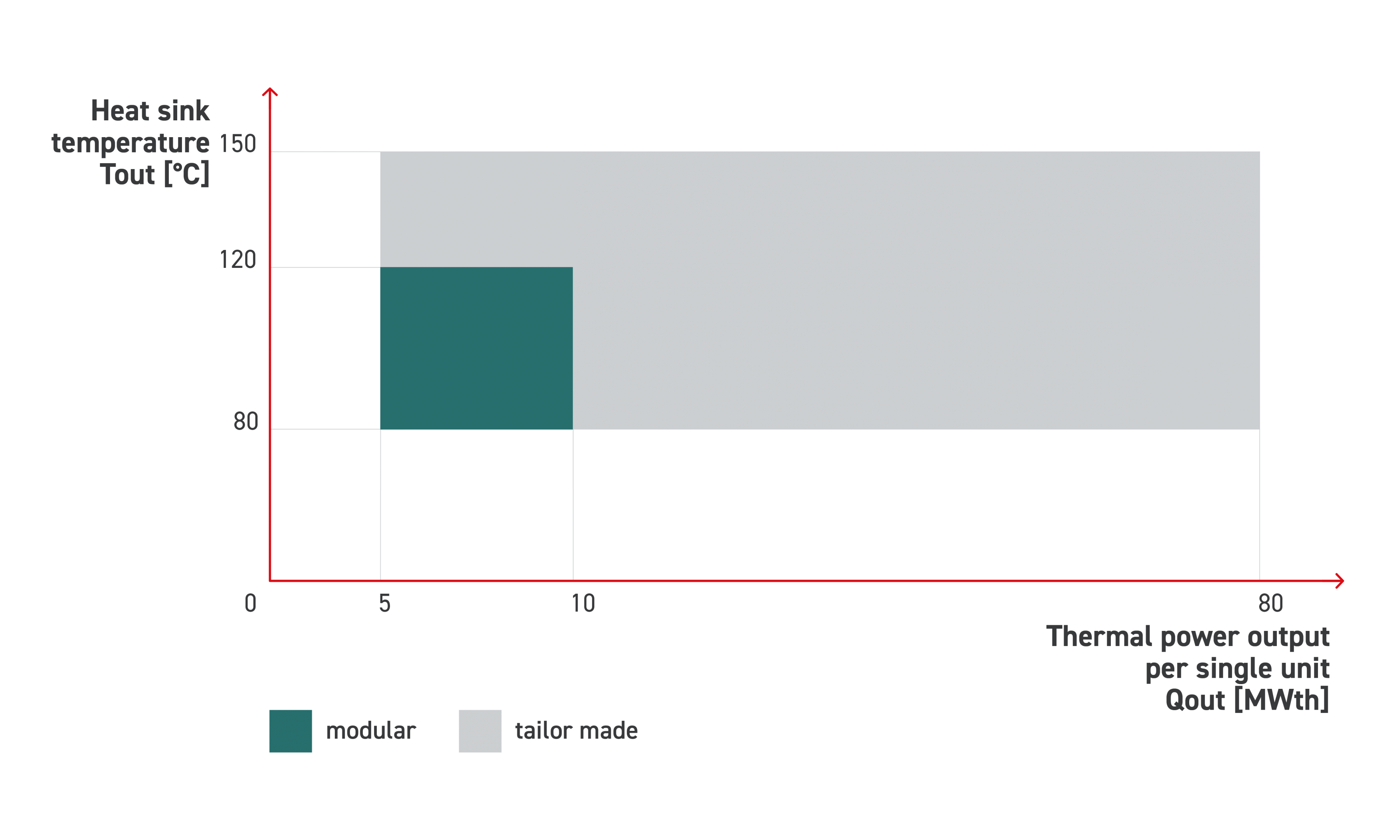

THERMAL POWER OUTPUT VS HEAT SINK TEMPERATURE

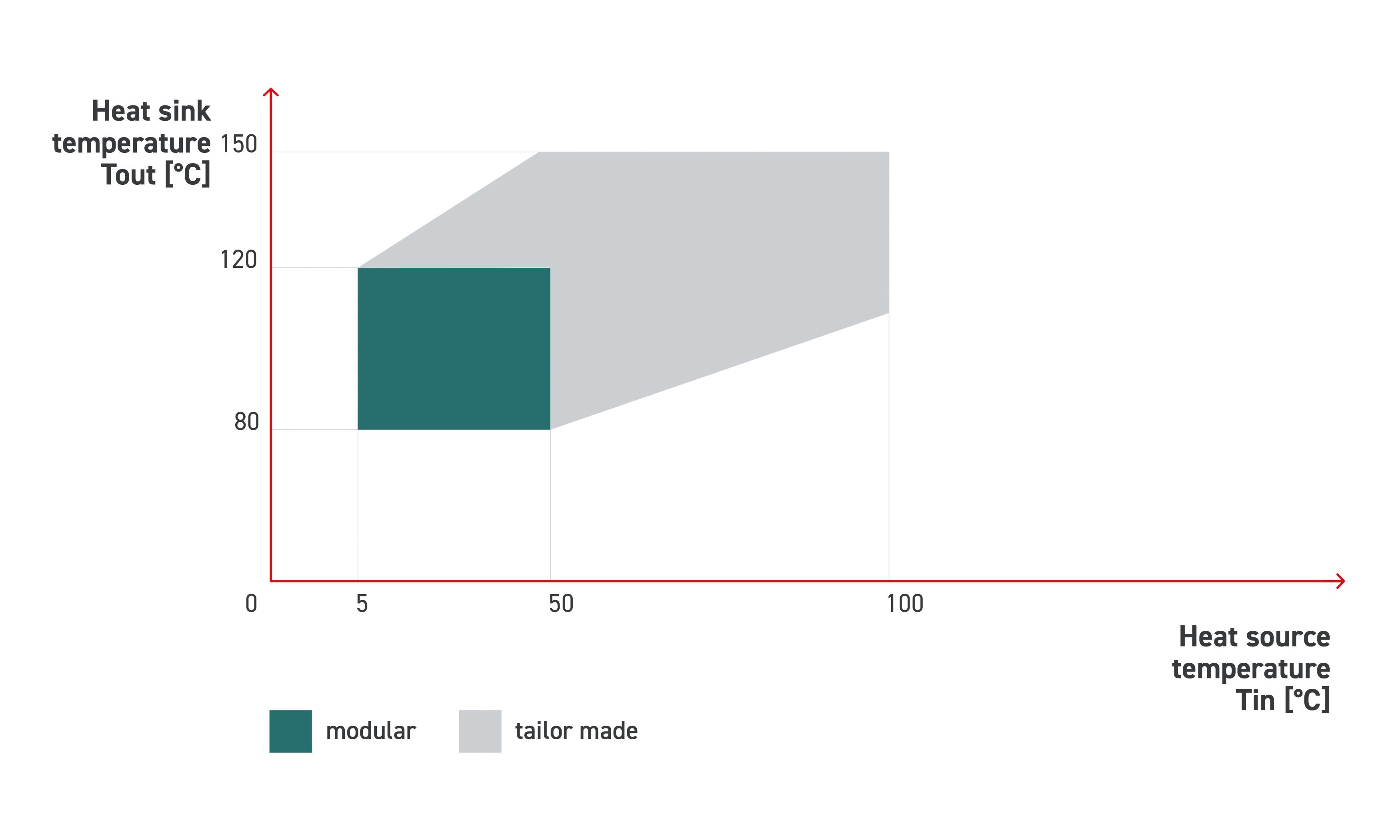

HEAT SOURCE TEMPERATURE VS HEAT SINK TEMPERATURE

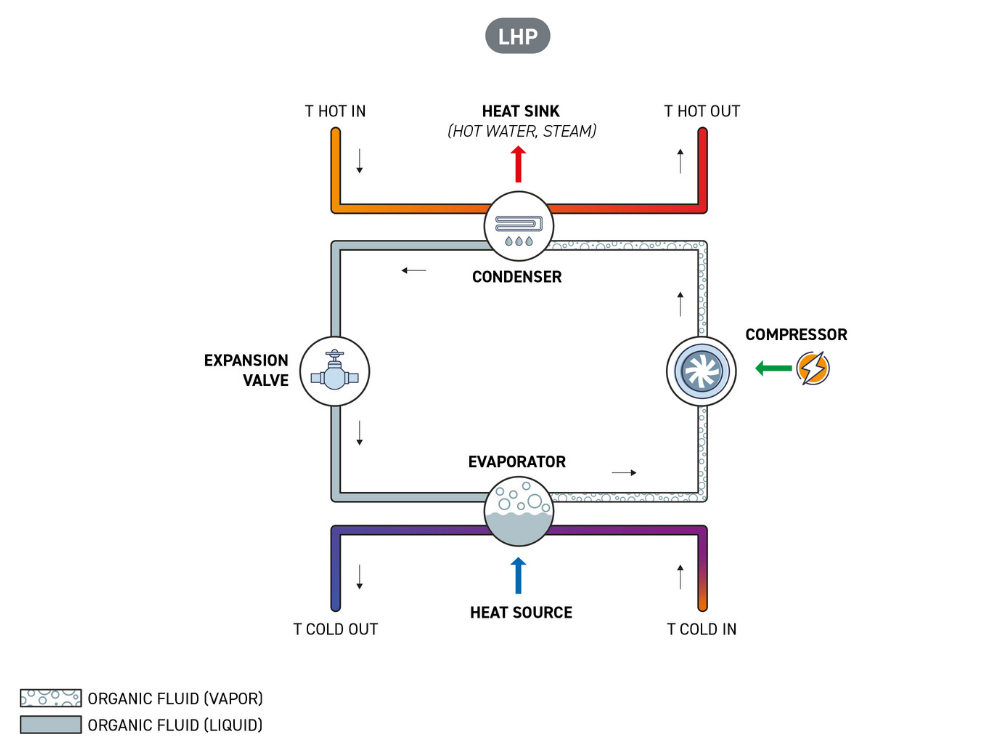

HIGH-TEMPERATURE HEAT PUMP WORKING PRINCIPLE
The Turboden Heat Pump cycle is based on four main components: the evaporator, a patented compressor, the condenser, and the expansion valve. The refrigerant evaporates by absorbing heat from the source—such as river water, sea water, or industrial waste heat), before being compressed by Turboden proprietary compressor, which increases its pressure and temperature. The resulting high-temperature refrigerant then transfers its thermal energy to the condenser to produce hot water or steam. Finally, the expansion valve brings the working fluid back to its initial conditions, completing the cycle.
This technology allows to reach temperatures above 150°C with high coefficients of performance (COP), ensuring outstanding efficiency and reliability.

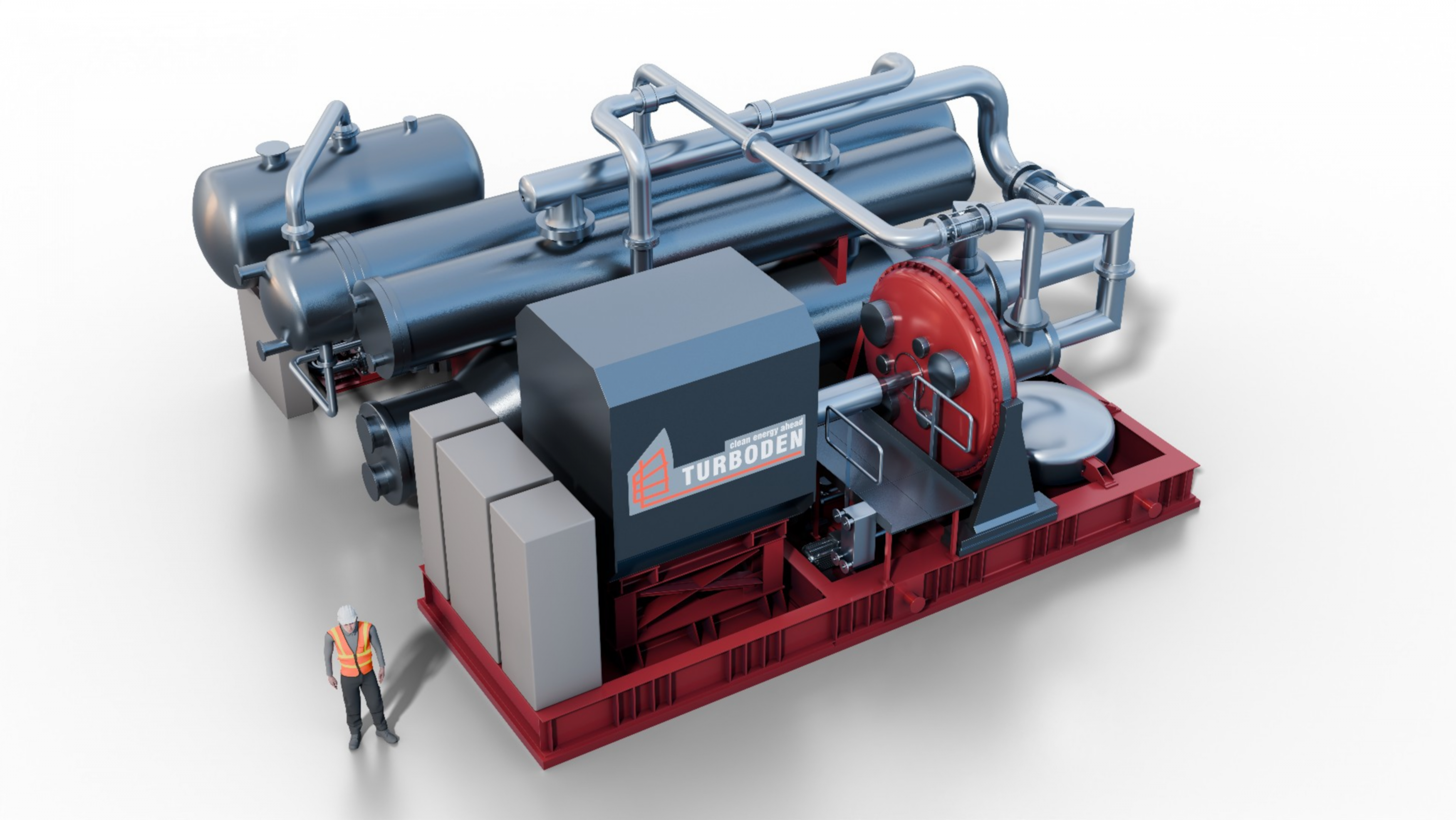

MODULAR HEAT PUMP
Turboden modular heat pumps are designed to deliver exceptional efficiency and adaptability for industrial processes and district heating networks. Featuring a scalable design with frame sizes from 5 to 15 MW and pre-assembled skids, these systems enable rapid installation with minimal site disruption. By combining multiple units, it is also possible to achieve higher power outputs, while maintaining the same ease of installation.
Capable of reaching output temperatures up to 120°C, our modular units efficiently manage temperature ranges and lifts of up to 100°C. They can produce hot water from various thermal sources—including waste heat, river water, and seawater—making them a versatile solution for wide range of energy recovery applications.
At the core of this advanced technology lies our proprietary patented centrifugal compressor. Specifically optimized for high-temperature cycles and natural refrigerants, it ensures reliable operation and outstanding performance.
By enabling the electrification of thermal processes with higher efficiency than conventional systems, Turboden modular heat pumps help reduce both emissions and operating costs—supporting sustainability goals while enhancing operational performance.

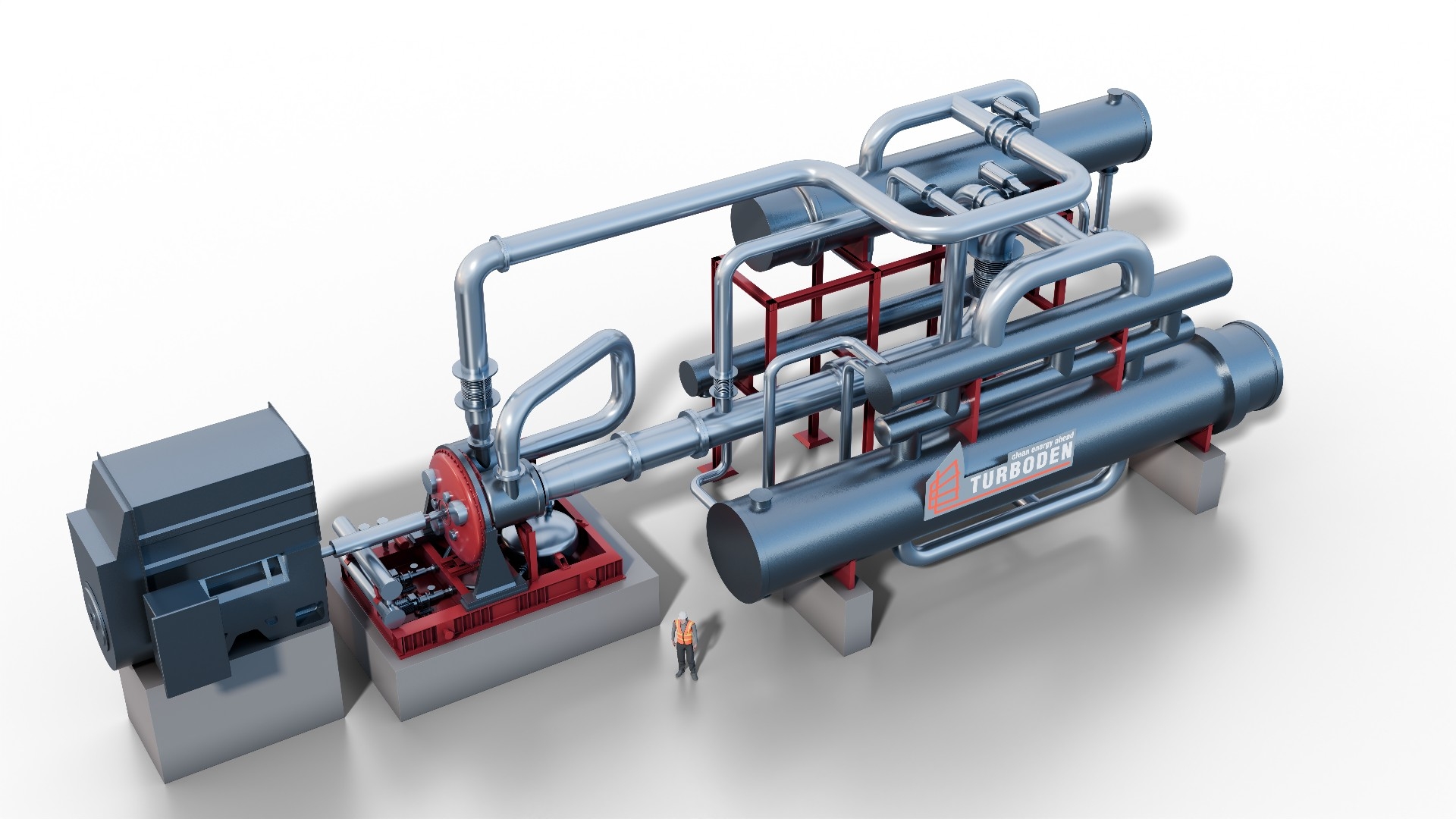

TAILOR MADE HEAT PUMP
Turboden tailor-made heat pumps are specifically designed for complex projects and specialized applications where conventional solutions fall short. With power ratings from 10 to 80 MW per unit and output temperatures up to 150°C, these systems deliver hot water for industrial processes and district heating networks with precision and reliability.
At the heart of this solution is our bespoke engineering approach. Our experts conduct in-depth analyses of each project to define the most efficient thermodynamic cycle and working fluid, selecting the optimal heat exchanger design to meet customer-specific standards. This ensures maximum compatibility, safety, and performance.
Thanks to the integration of Turboden proprietary compressors or Mitsubishi Heavy Industries (MCO) compressors—combined with the expertise of our multidisciplinary engineering team—we support our customers through every project phase, from initial concept to full implementation.
