Large Heat Pump

Utility-Scale Heat Transfer Solutions for District Heating and Industry

Turboden's innovative large heat pumps and industrial heat pumps are utility-scale heating solutions engineered to efficiently transfer substantial quantities of heat from lower temperatures to higher temperature applications like district heating networks and energy-intensive industrial processes. This cutting-edge technology optimizes heating processes while significantly enhancing energy efficiency, reducing operational costs and carbon footprint.

LHP are at the forefront of the strategy for the electrification of heat. Through the supply of Large Heat Pumps Turboden wishes to play a broader role in the decarbonization path.

  • TURBODEN SOLUTIONS FOR INDUSTRIAL PROCESSES
  • REDUCE YOUR ENERGY BILL BY GENERATING YOUR OWN POWER
  • LARGE HEAT PUMP AND STEEL INDUSTRY FOR DECARBONIZED SMART CITY

HEAT ELECTRIFICATION TECHNOLOGIES: THE TRANSITION TO CLEAN HEAT

Turboden's LHPs are not just about providing heat.

They are instrumental in driving the shift towards more sustainable and efficient energy systems:

  • Empowering district heating: By integrating LHPs into district heating systems, Turboden significantly mitigates reliance on fossil fuels, thereby reducing CO2 emissions and promoting cleaner urban environments.
  • Boosting industrial energy efficiency: LHPs are adept at capturing and repurposing low-grade heat for higher temperature industrial applications, enhancing operational efficiency in sectors such as refinery and petrochemical, chemical and pharmaceutical, food processing, and pulp and paper.
  • Carbon Capture Sequestrastion (CCS).

With Large Heat Pumps, Turboden is at the forefront of delivering tailored solutions that not only improve energy efficiency but also underscore the company's commitment to fostering a sustainable future. These initiatives align with global efforts to cut emissions and enhance energy independence.

Explore how Turboden's innovative heat pump technologies, including our comprehensive lineup of industrial solutions, can revolutionize your energy management strategy. Our dedicated team focuses on crafting solutions that go beyond meeting efficiency and sustainability objectives.

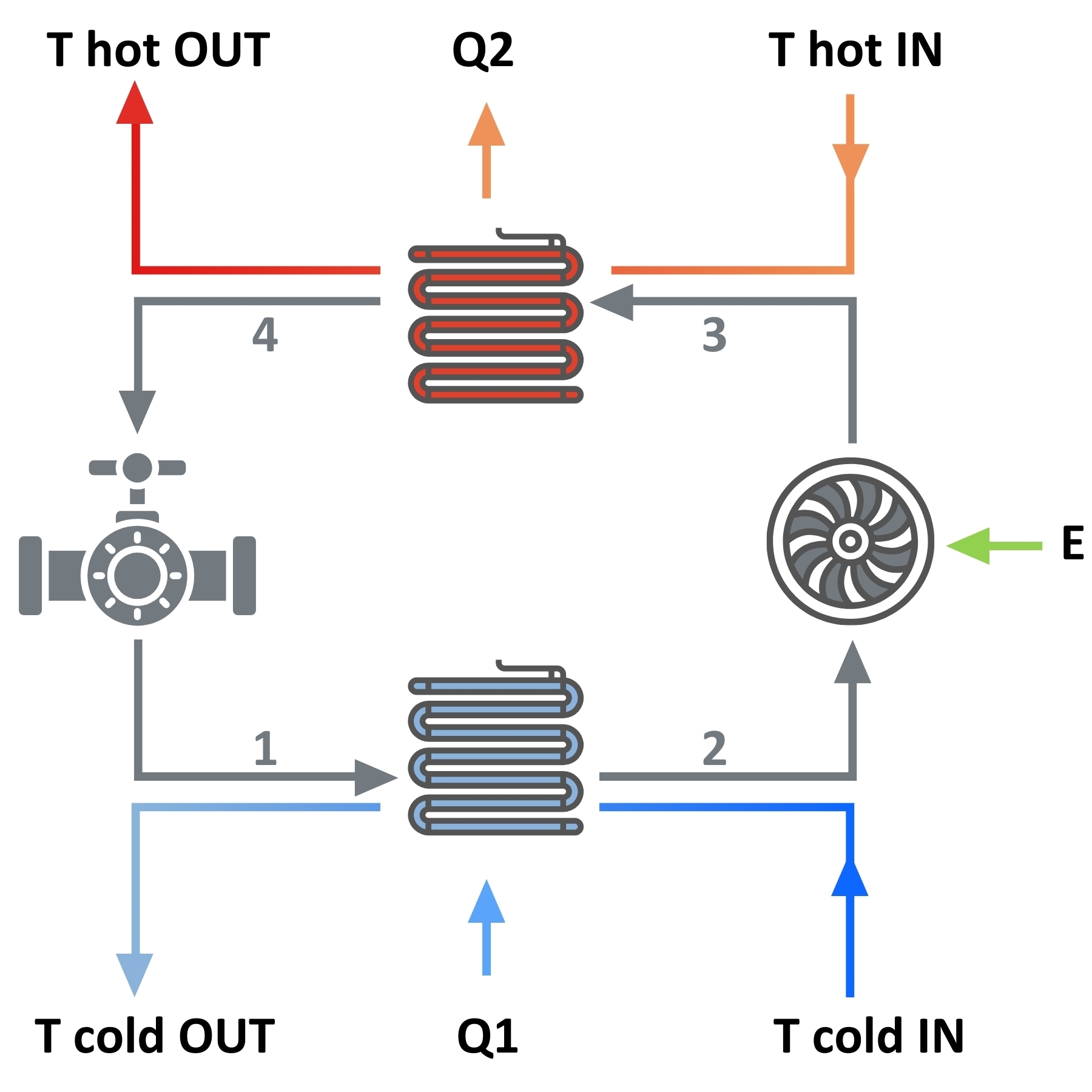

HEAT PUMP WORKING PRINCIPLE

The heat pump uses a medium-to-low temperature heat source to vaporize a suitable organic working fluid in the evaporator (1->2).

The organic fluid vapor increases its pressure in the compressor (2->3), which is coupled to the electric motor, thus consuming electricity.

The vapor is then condensed in the condenser (3->4), where it heats the medium-to-high temperature heat user resulting as the outcome from the system.

The organic working fluid is then laminated (4->1), reducing its pressure and temperature and completing the closed-cycle operation.

Heat carriers suitable as heat source and user (non exhaustive list):

  • Liquid (water, thermal oil, process streams …)
  • Vapor (steam, chemical mixture, …)
Large Heat Pump

LARGE SIZES AND HIGH TEMPERATURES OPERATION

Turboden’s LHP lead the way in developing complex, customized solutions to meet the unique requirements of each customer.

Thanks to the expertise of Turboden’s engineers and ongoing research in the field, our innovative heating solutions can efficiently operate at large-scale thermal outputs (starting from 5 MWth) and high temperatures (exceeding 200°C), including steam generation.

Large Heat Pump

STRENGTHS

  • Fully tailored solutions with optimized performance
  • Experience and flexibility to manage a wide range of working fluids, including natural refrigerant
  • Compressor developed and assembled in-house (Turboden and MHI Compressor)
  • Range size from 5 MWth per unit
  • Output temperature beyond 200°C (including steam generation)
  • Core system for renewable heat and energy efficiency
  • Clean generation of higher-grade heat
  • Reduction of CO2 emissions
  • Several proven technical solutions shared with sister ORC technology
  • Global after sales service with 24/7 remote assistance
  • Deep experience in process integration
  • Ability to manage complex and large projects
  • Long design life

TURBODEN COMPRESSOR PORTFOLIO

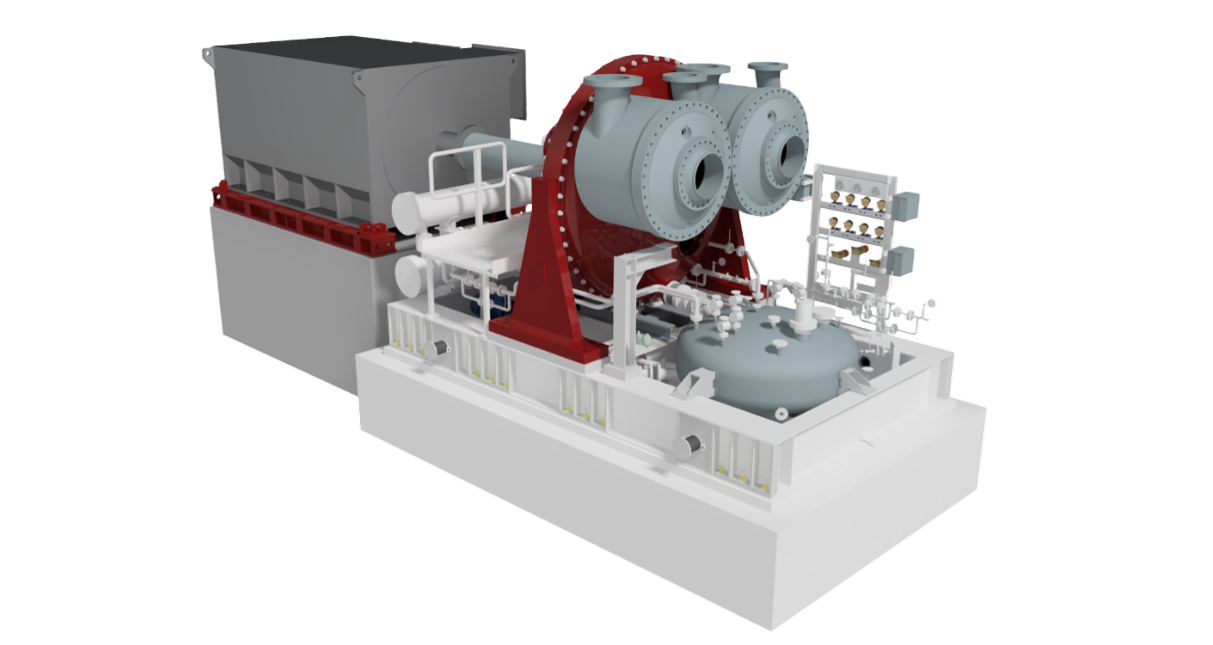

TURBODEN LHP HERMETIC COMPRESSOR LINE (Patent pending)

Compressors for natural refrigerants in closed loop heat pumps

  • Heavy duty machine integrally geared, designed for continuous operation with reduced maintenance
  • Power range: 300 – 18,000 kW
  • Impeller diameter up to 1,500 mm
  • Enhanced flexibility for optimal part load operation and quick process adaptation
  • Maximum safety with no harmful fugitive emissions
Large Heat Pump

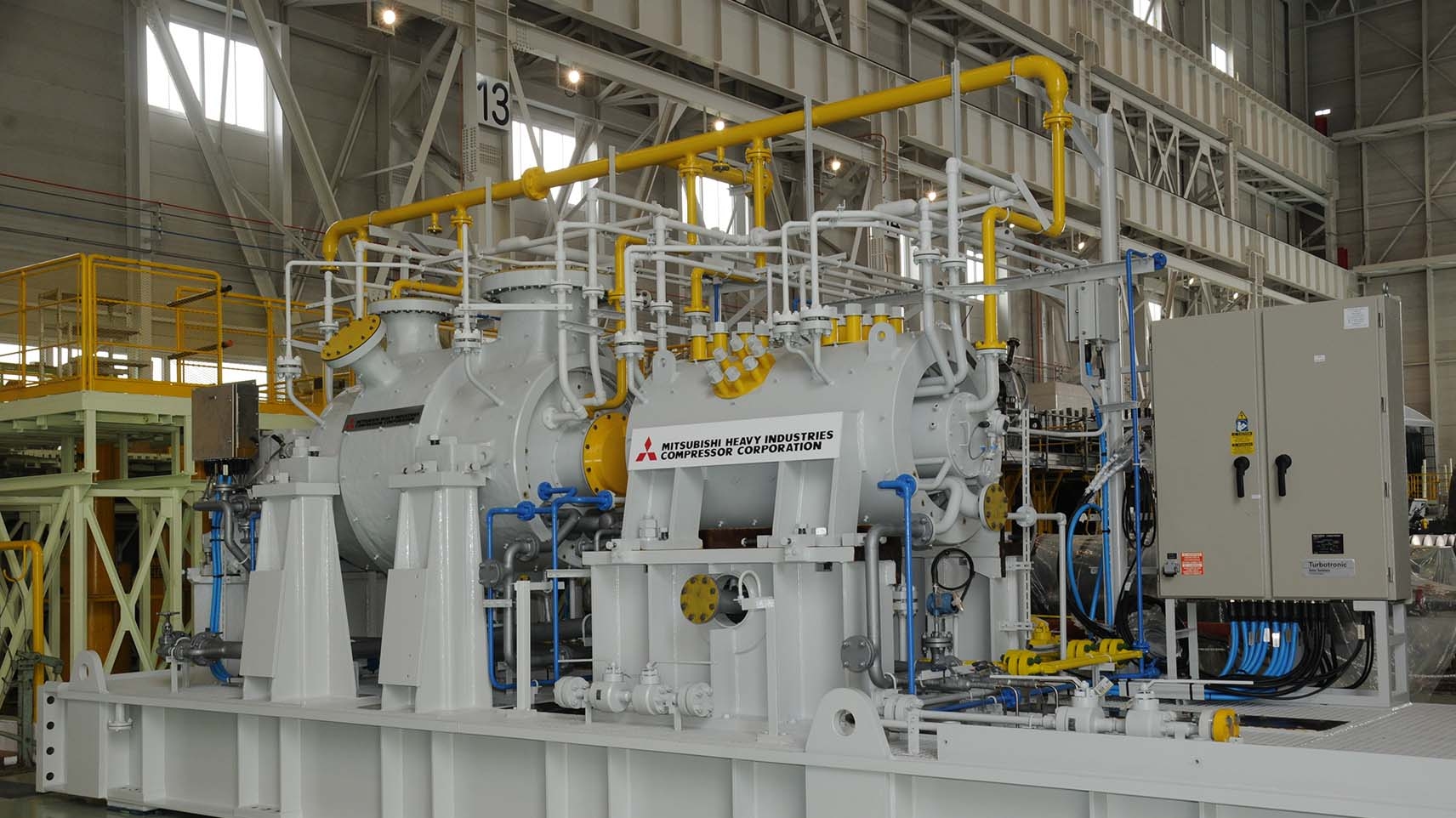

MITSUBISHI HEAVY INDUSTRIES COMPRESSOR

API617 beam type compressors

  • Special Purpose API centrifugal compressor designed for critical process operation
  • Power up to 50+ MW
  • Impellers diameter up to 1,700 mm
  • High reliability and availability
  • DGS sealing system with leakage recovery system
  • Over 4000 compressors delivered in more than 60 countries
Large Heat Pump

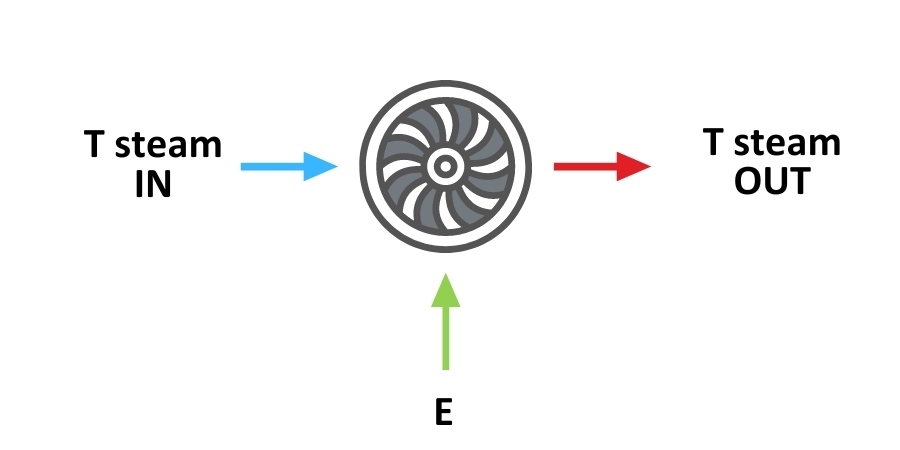

MECHANICAL VAPOR RECOMPRESSION

Mechanical vapor recompression (MVR) system, acting as an open cycle water heat pump, increases both the temperature and the pressure of a water stream, to generate steam at specific conditions needed.

The MVR technology finds its application either as a bottom technology for large scale heat pumps, to reach higher temperature output, or stand alone when high temperature water (or low pressure steam) is available as heat source.

Typical applications are related to the supply of high temperature steam in industrial processes within different industrial sectors, such as the distillation processes in the petrochemical industry or the cristallization process in the food and beverage industry.

Large Heat Pump

LARGE HEAT PUMPS FOR INDUSTRIES AND UTILITIES

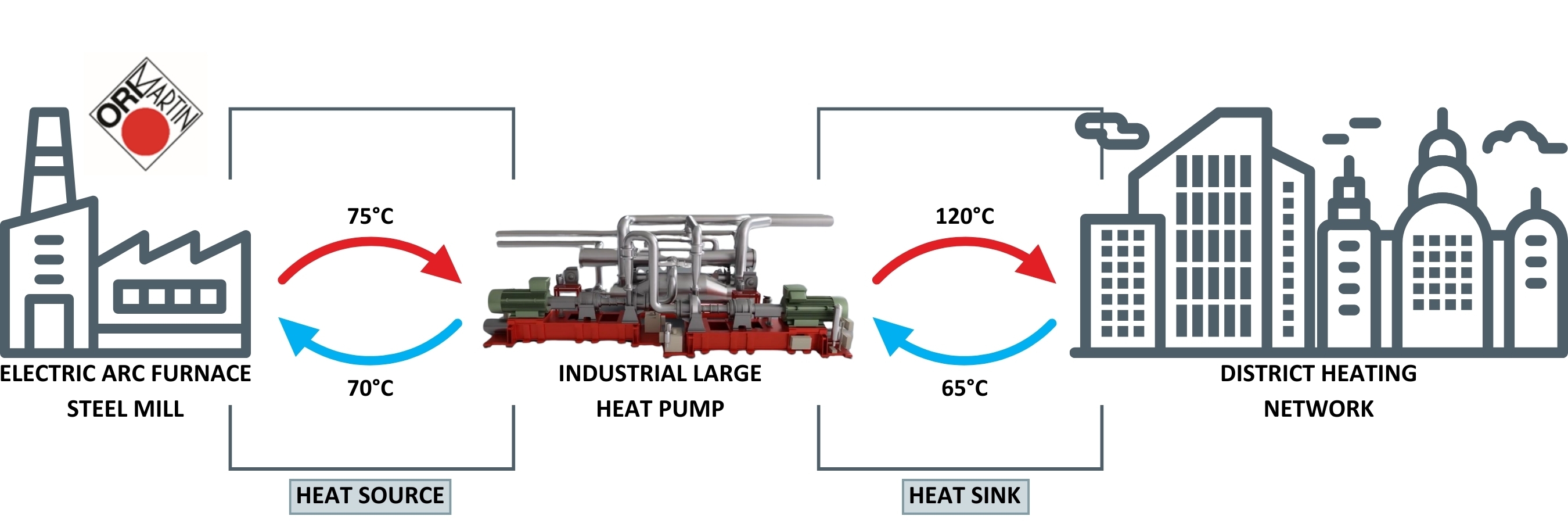

ORI MARTIN STEELWORKS (IN OPERATION)

ORI MARTIN STEELWORKS (IN OPERATION)

Heat from the cooling of the steelmaking process can be upgraded through a LHP and used for district heating, instead of being wasted, i.e., dissipated through cooling towers.

  • Country: Italy, in operation since 2023
  • Size: 6 MWth (equivalent to 3,500 houses)
  • Exploitation of steel mill waste heat to serve local district heating network
  • Output: pressurized water at 120°C delivered to the district heating network
  • Centrifugal innovative compressor designed by Turboden
  • LHP working fluid: synthetic refrigerant

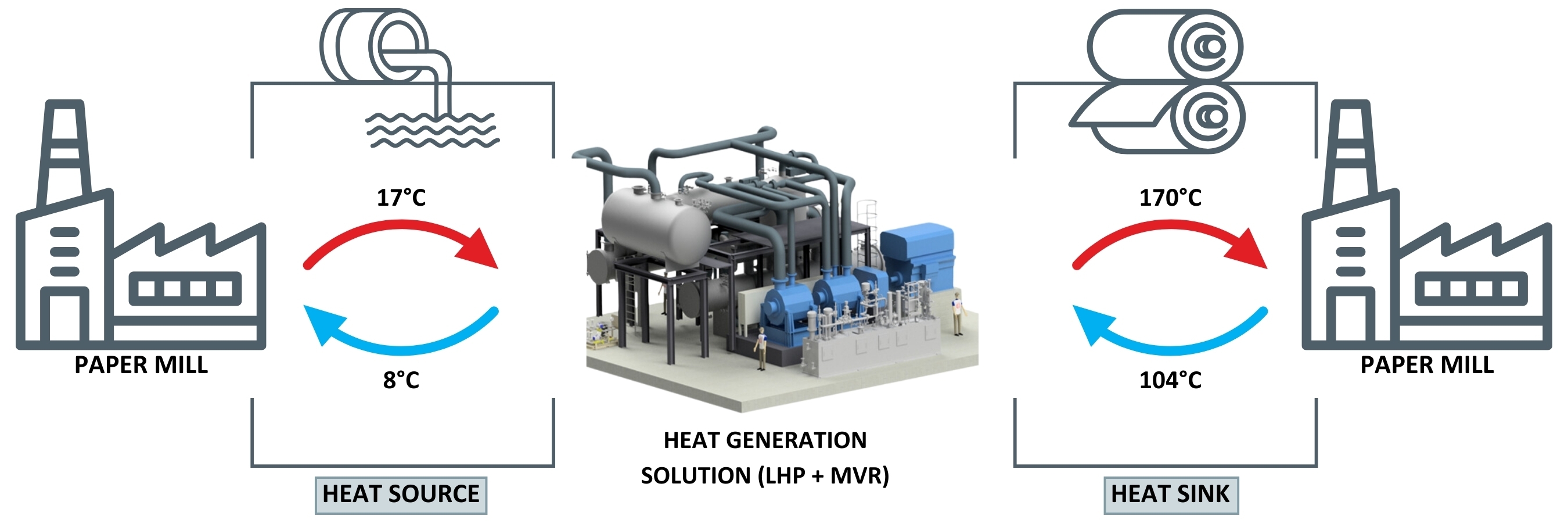

PULP & PAPER COMPANY (UNDER CONSTRUCTION)

PULP & PAPER COMPANY (UNDER CONSTRUCTION)

Low temperature waste heat produced by the paper mill can be upgraded through a LHP in combination with MVR to the generation of useful steam utilized within the paper mill itself

  • Country: Northern Europe
  • Size: 12 MWth
  • Exploitation of paper mill waste heat to generate steam for the process
  • Output: superheated steam at 170°C delivered to the paper mill
  • Integration of LHP with MVR to provide high-temperature steam at high efficiency
  • Centrifugal MCO compressor
  • LHP working fluid: hydrocarbon
